BJF-40.5 KV/300A-3150A BJFW-40.5KV/300A-3150A

Current Location:home > products > Flange Type transformer bush (Flange Type Sealed)

BJF-40.5 KV/300A-3150A BJFW-40.5KV/300A-3150A
Contacts:Section manager
Tel:0086-318-3736777 0086-318-3736111
Mobile: 86-13333086669

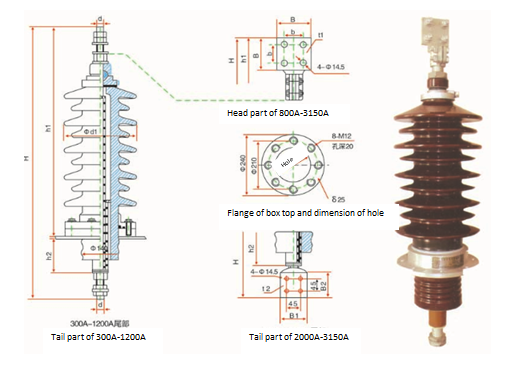

■ Outline dimension

■ Technical parameters and outline dimension of bush

Code	Type-Voltage/Current KV/A	Dimensions (mm)											Shape	No of Sheds	Creep age Distance (mm)	Weight Kg
Code	Type-Voltage/Current KV/A	H	h1	h2	d	d1	B	b	B1	B2	t1	t2	Shape	No of Sheds	Creep age Distance (mm)	Weight Kg
WT.0300.40.5.JF	BJF-40.5/300	865	638	198	M12	210							Single Umbrella	7	875	20
WT.0400.40.5.JF	BJF-40.5/400	887	653	201	M16	210							Single Umbrella	7	875	21
WT.0600.40.5.JF	BJF-40.5/600	905	664	204	M20	210							Single Umbrella	7	875	22
WT.0800.40.5.JF	BJF-40.5/800	1013	773	205	M24	210	80	40			12		Single Umbrella	7	875	24
WT.1000.40.5.JF	BJF-40.5/1000	1020	777	205	M30	210	80	40			12		Single Umbrella	7	875	27
WT.1200.40.5.JF.A	BJF-40.5/1200	1030	780	205	M33	210	80	40			12		Single Umbrella	7	875	29
WT.1200.40.5.JF.B	BJF-40.5/1200	1056	780	181	M33	210	80	40	70	75	12	12	Single Umbrella	7	875	31
WT.2000.40.5.JF	BJF-40.5/2000	1120	817	191	Φ42	210	100	50	80	85	16	14	Single Umbrella	7	875	36
WT.3150.40.5.JF	BJF-40.5/3150	1120	817	191	Φ48	210	100	50	80	85	16	16	Single Umbrella	7	875	40
WT.0300.40.5.JF.W	BJFW-40.5/300	950	723	198	M12	250							Big and small umbrellas	11	1280	30
WT.0400.40.5.JF.W	BJFW-40.5/400	972	738	201	M16	250							Big and small umbrellas	11	1280	31
WT.0600.40.5.JF.W	BJFW-40.5/600	990	749	204	M20	250							Big and small umbrellas	11	1280	32
WT.0800.40.5.JF.W	BJFW-40.5/800	1098	858	205	M24	250	80	40			12		Big and small umbrellas	11	1280	34
WT.1000.40.5.JF.W	BJFW-40.5/1000	1105	862	205	M30	250	80	40			12		Big and small umbrellas	11	1280	38
WT.1200.40.5.JF.W.A	BJFW-40.5/1200	1115	865	205	M33	250	80	40			12		Big and small umbrellas	11	1280	40
WT.1200.40.5.JF.W.B	BJFW-40.5/1200	1141	865	181	M33	250	80	40	70	75	12	12	Big and small umbrellas	11	1280	41
WT.2000.40.5.JF.W	BJFW-40.5/2000	1205	902	191	Φ42	250	100	50	80	85	16	14	Big and small umbrellas	11	1280	48
WT.3150.40.5.JF.W	BJFW-40.5/3150	1205	902	191	Φ48	250	100	50	80	85	16	16	Big and small umbrellas	11	1280	52
